Harken launch 57, 75 & 100mm Black Magic® Loop Block Series
by Harken UK 8 May 2008 15:08 BST
“The technology of the America’s Cup continuously raises the bar for hardware design,” commented Dan Rondeau, new products manager. “The Black Magic® Loop Series is the latest innovation to trickle down from the Cup and benefit all Big Boat sailors.”

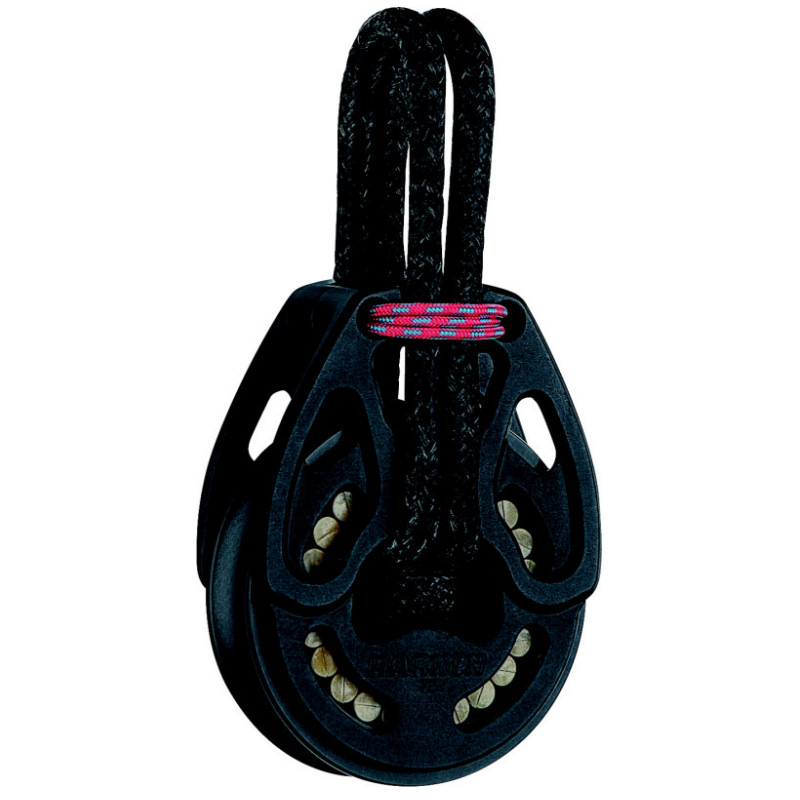

This block features a soft loop attachment, which is an attachment concept that has come directly from America’s Cup and Grand Prix racing. The soft loop is loaded on a closed bail in the center of the sheave and is the structural component that takes the primary load.
As well as giving a significant weight saving the soft loop attachment allows the block to articulate for a fair lead ensuring the block’s bearing system is operating at top efficiency. Sculpted sideplates and unique captive lashing system prevents the block from capsizing during intermittent loading situations.

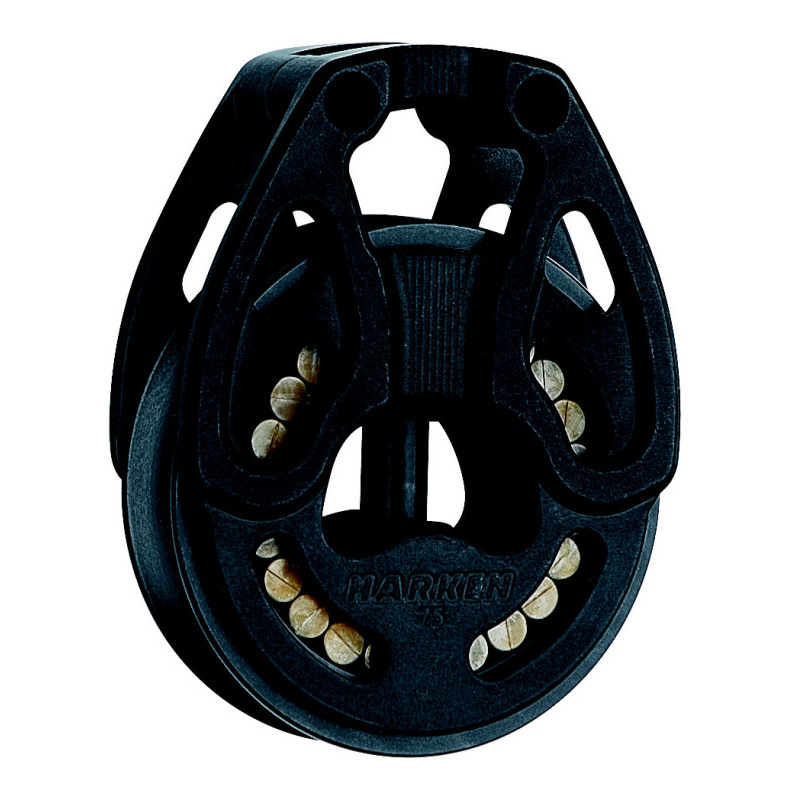

There is a 125 mm versions of the Black Magic® Loop blocks coming soon. All blocks are made of strong, lightweight sculpted 6061-T6 aluminum that has been CNC-machined to remove excess weight. The thin-profile, deep-groove aluminum sheave has radiused edges to protect high-tech line. Sheaves and sideplates are deep-saturation Hardkote-anodized and UV-stabilized with black additive for maximum protection. The Torlon® roller bearings are housed in a center cage and separated to provide less friction, greater strength and reduced wear.
Harken, Inc. is a leading manufacturer and distributor of innovative sailboat hardware and accessories. Headquartered in Pewaukee, Wisconsin, Harken manufactures in the USA and Italy. Their network includes offices in 48 countries, with group offices located in Australia, France, Italy, New Zealand, Slovenia, Sweden, the United Kingdom and the United States (Rhode Island, California, and Florida).
